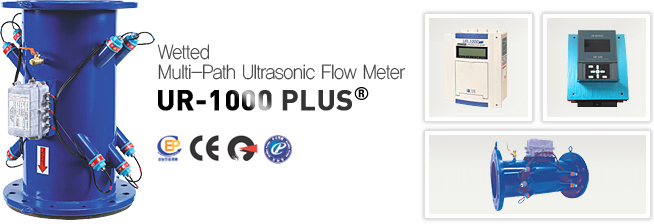

Wetted Multi-Path Ultrasonic Flow Meter
| PRODUCTS
|
|
PRODUCTS :: Flow Meter :: UR-1000 PLUS |
|
|
|
|
|
|
|
|
|
|
|
High Precision Ultrasonic Flowmeter that substantially improves measurement accuracy using multi-path and wetted type method. |
|
|
|

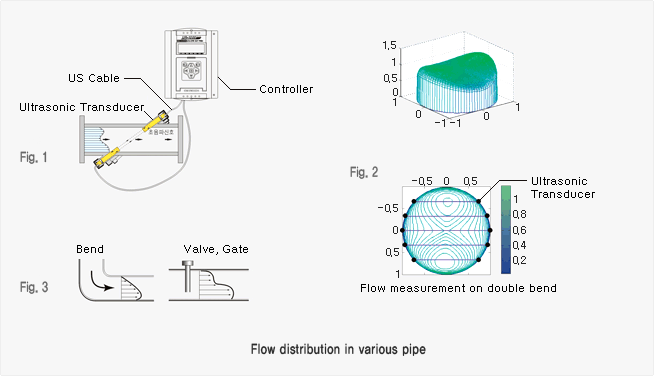

This meter uses multi-path ultrasonic waves to measure the mean value of velocities of the fluid lines on the cross section area of the fluid and calculates the flow volume without any coefficients by applying a double integral formula to the velocity and the area distribution, This method minimizes measurement errors due to the complicated velocity distribution near elbows, valves, pumps and etc. |
|
|
|
|
|
|
|
|
|
Reynolds number and friction coefficient have no effect. No errors occur due to the pipe's properties such as its radius, pipes thickness, lining scale and signal time. |
|
|
|
|
|
Measurement based on the measured value (MV) ,not the full scale deflection (FS), nullifies the effect of flow range. |
|
|
|

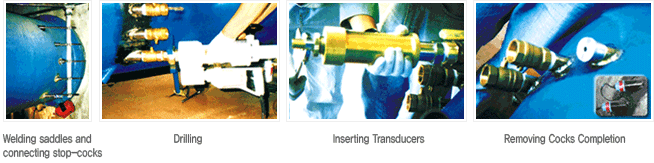

Ultrasonic transducers directly mounted into the existin pipe without stopping the fluid flow. This installation method is excellent for the large diameter pipes with its low cost and convenience. Also It can achieve higher accuracy. |
|
|
|
Domestic and overseas patent rights were acquired and certified by the Korea Standard Scientific Research Center for this feature. (KS B 5640) |
|
|
|
Tap water, sewage, industrial water, sea water, petroleum, beverage, preocessing water, and coolant and cold water circulation for chemical and still manufacturing plants |
|
|
|
One year full labor and parts. |
|
|
|
Very competitive |
|
|
* : Option |
Measurement Method |
Multi-path Ultrasonic Transit-Time Measurement(3, 5 path) |
Measuring Device |
Fluid |
Tap water, Sewage, Industrial water, Sea water, Petroleum, Waste water, Beverage etc. |
Type |
Ultrasonic Mult-path Wetled Type(Transducer Insert Type) |
Velocity Range |
-20m/s~+20m/s(¡¾0.02m/s) |
Applied Pipe Diameter |
DN25mm~10.000mm |
Frequency |
200kHz~1.5MHz |
Operating Temperature |
-20¡É~+60¡É |
-40¡É~+180¡É * |
Installation Position |
Forward : over 3D Backward : over 2D |
Material |
Transducer |
PE(Installation without stopping flow) |
Tellon, Brass, STS316L, Titanium * |
Flowtube |
Carbon Steel |
STS304, PVC * |
Operating Pressure |
PN 10(kgt/§²) |
PN 40(kgt/§²) * |
Waterproof Level |
IP68 |
Installation Method |

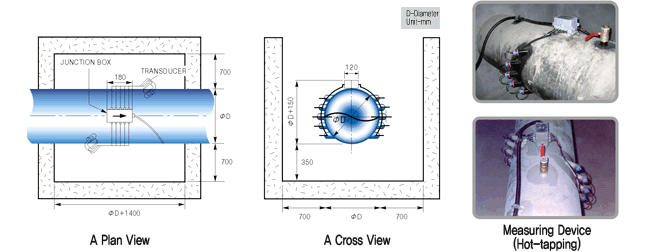

Flange Type(DN 25mm~), Hot Tapping Type(DN 200mm~) |
Control and Computing Device |
Type |
Seperate |
Explosion-Procf * |
Main-Processing Device |
32bit Micro Process |
Display |

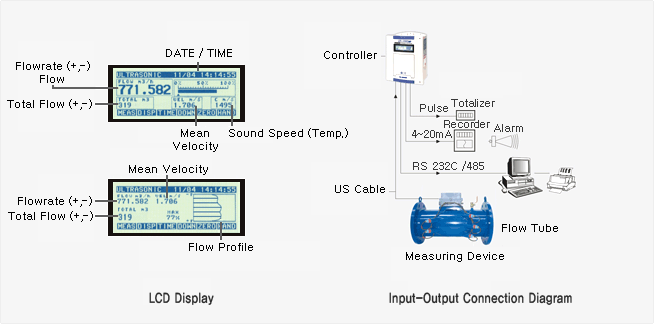

240X64LCD: Flowrate, Total, Velocity Profile, Speed of Sound, Power On/Off Record, Self-Diagncsis |
Accuracy |
¡¾0.2%~¡¾0.5%(Measured Value) |
Output Signal |
4~20mA DC, Pulse, RS232C, Alram, Relay |
RS485, BCD * |
Operating Temperater |
-20¡É~+60¡É |
-40¡É~+80¡É * |
Save / Download |
(1MB) 32,000Data(year-month-day-hour-minute-total) |
Flowrate Display Unit |
§³, gallon, liter |
Input Power |
AC110~220V(50~60Hz) |
Demanded Power |
16W |

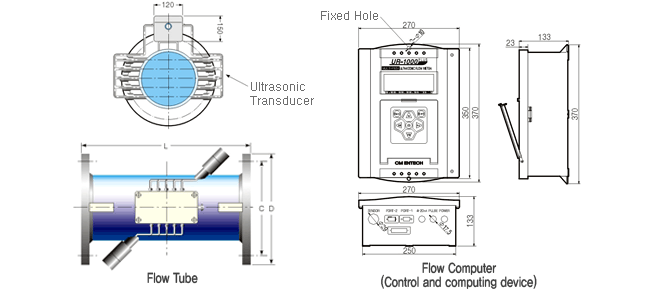

Size |
270(W)X370(H)X133(D) (3.7Kg) |
300(W)X400(H)X185(D) (2.5kg) * |
Exclusive Cable |
Material |
US CABLE(RG-174-12C) : 10m (Optional Length) |
|
|
|
|
With Elbow |
Path Nos. |
L1 |
L2 |
Accuracy |
5 |
3D |
2D |
¡¾1.0% |
5D |
2D |
¡¾0.5% |
10D |
2D |
¡¾0.25% |
With T |
Path Nos. |
L1 |
L2 |
Accuracy |
5 |
3D |
2D |
¡¾1.0% |
5D |
2D |
¡¾0.5% |
10D |
2D |
¡¾0.25% |
With Expansion pipe |
Path Nos. |
L1 |
L2 |
Accuracy |
5 |
3D |
2D |
¡¾1.0% |
5D |
2D |
¡¾0.7% |
10D |
2D |
¡¾0.5% |
With Reducing pipe |
Path Nos. |
L1 |
L2 |
Accuracy |
5 |
3D |
2D |
¡¾1.0% |
4D |
2D |
¡¾0.5% |
10D |
2D |
¡¾0.25% |
With Valve |
Path Nos. |
L1 |
L2 |
Accuracy |
5 |
3D |
2D |
¡¾1.0% |
5D |
2D |
¡¾0.7% |
10D |
2D |
¡¾0.5% |
With Pump |
Path Nos. |
L1 |
L2 |
Accuracy |
5 |
3D |
2D |
¡¾1.0% |
5D |
2D |
¡¾0.7% |
10D |
2D |
¡¾0.5% |
|
|
|
|
|
|
Diameter(D) |
L |
Kg |
Standard |
Option |
KS D 3578 F15 (KS D 4308) |
KS B 1503 -10K (KS B 1511) |
D |
C |
Hole-Number |
BOLT |
D |
C |
Hole-Number |
BOLT |
50A |
380 |
8 |
155 |
120 |
4 |
M16 |
155 |
120 |
4 |
M16 |
65A |
420 |
10 |
175 |
140 |
4 |
175 |
140 |
4 |
80A |
450 |
12 |
211 |
160 |
4 |
185 |
150 |
8 |
100A |
380 |
15 |
238 |
180 |
8 |
210 |
175 |
8 |
125A |
420 |
20 |
263 |
210 |
8 |
250 |
210 |
8 |
M20 |
150A |
450 |
25 |
290 |
240 |
8 |
M20 |
280 |
240 |
8 |
200A |
550 |
38 |
342 |
295 |
8 |
330 |
290 |
12 |
250A |
620 |
60 |
410 |
350 |
12 |
400 |
355 |
12 |
M22 |
300A |
680 |
70 |
464 |
400 |
12 |
445 |
400 |
16 |
350A |
750 |
80 |
530 |
460 |
16 |
490 |
445 |
16 |
400A |
850 |
105 |
582 |
515 |
16 |
M24 |
560 |
510 |
16 |
M24 |
450A |
900 |
130 |
652 |
565 |
20 |
620 |
565 |
20 |
500A |
1000 |
155 |
706 |
620 |
20 |
675 |
620 |
20 |
600A |
1100 |
210 |
810 |
725 |
20 |
M27 |
795 |
730 |
24 |
M30 |
700A |
1150 |
290 |
928 |
840 |
24 |
905 |
840 |
24 |
800A |
1200 |
280 |
1034 |
950 |
24 |
M30 |
1020 |
950 |
28 |
900A |
1300 |
455 |
1156 |
1050 |
28 |
1120 |
1050 |
28 |
1000A |
1350 |
570 |
1262 |
1160 |
28 |
M33 |
1235 |
1160 |
28 |
M36 |
1100A |
1400 |
670 |
1366 |
1270 |
32 |
1345 |
1270 |
28 |
1200A |
1450 |
830 |
1470 |
1387 |
32 |
1465 |
1380 |
32 |
1350A |
1550 |
1100 |
1642 |
1552 |
36 |
M36 |
1630 |
1540 |
36 |
M42 |
1500A |
1650 |
1420 |
1800 |
1710 |
36 |
1795 |
1700 |
40 |
1500A |
1700 |
1680 |
1915 |
1820 |
40 |
|
|
|
|
1650A |
1750 |
1750 |
1950 |
1860 |
40 |
|
|
|
|
1800A |
1800 |
2145 |
2115 |
2020 |
44 |
M45 |
|
|
|
|
1900A |
1900 |
2350 |
2220 |
2126 |
48 |
|
|
|
|
2000A |
2000 |
2915 |
2325 |
2230 |
48 |
|
|
|
|
2100A |
2000 |
3041 |
2440 |
2340 |
48 |
|
|
|
|
2200A |
2100 |
3246 |
2550 |
2440 |
52 |
M52 |
|
|
|
|
2300A |
2100 |
3536 |
2655 |
2540 |
52 |
|
|
|
|
2400A |
2200 |
3964 |
2760 |
2650 |
56 |
|
|
|
|
2500A |
2200 |
4280 |
2860 |
2750 |
56 |
|
|
|
|
2600A |
2300 |
4722 |
2960 |
2850 |
60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
