| PRODUCTS :: Level Meter :: SL-3000 PLUS |
|
 |
|
|
 |
|
|
|
 |
|
| Sonic levelmeter that was specially designed for tanks containing various types of fluid. |
|
 |
|
 |
| The guide pipe protects the sonic wave sensors inside from the fluid. |
|
 |
| Installation is extremely flexible and least costly. |
|
 |
| Sonic wave guide pipe enables this meter to measure the average level around it and thus nullifies the effects of the shaking fluid. |
|
 |
| This meter has various measurement modes. |
|
 |
| Various industrial tanks that contain any kind of fluid. |
|
 |
| One year full labor and parts. |
|
 |
| Very competitive |
|
 |
|
 |
| * : Option |
| Measuring Device (Wave Guide Pipe) |
| Measurement Method |
Sonic Reflection |
| Application |
Industrial Tanks |
| Range |
0m~10m |
| Frequency |
1~3kHz |
| Operating Temperature |
-20℃~+60℃ |
-40℃~+150℃ * |
| Humidity(Max) |
90% RH(98% RH) |
| Transducer |
Material |
Generator : PE, MC, Nylon, Receiver : STS304 |

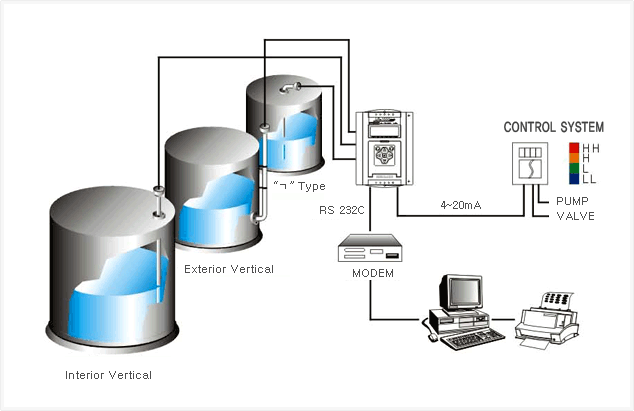

| Installation |
Vertical, Slant, Multi-angle Type |
| Wave Guide Pipe Material |
Steel |
STS, CPVC * |
| Diameter |
50mm, 65mm, 100mm |
| Waterproof Level |
Generator : IP65, Receiver : IP68 |
| Control and Computing Device |
| Type |
Seperate |
| Display |
LCD Dissplay : 000.000m |
| Accuracy |
Lower ±0.1%(lower ±2mm) |
| Output Signal |
RS232C |
BCD, 4~20mA DC * |
| Operating Temperater |
-20℃~+60℃ |
-40℃~+80℃ * |
| Save / Download |
10,000Data(year-month-day-hour-minute-second-level) |
100,000Data * |
| Level Display Unit |
m |
| Input Power |
AC110~220V(50~60Hz), DC12V |
| Demanded Power |
Operating : 3W, Walting : 1.2W |
| Size |
270(W)X370(H)X133(D) (3.5kg) |
| Exclusive Cable |
| Material |
RG-174 / U |
|
|
|
 |
|
|
|
