| PRODUCTS :: Level Meter :: SL-2000 PLUS |
|
 |
|
|
 |
|
|
|
 |
|
| A special version of sonic levelmeter that measures not only the fluid level but also flow volumes in weirs and flumes. |
|
 |
|

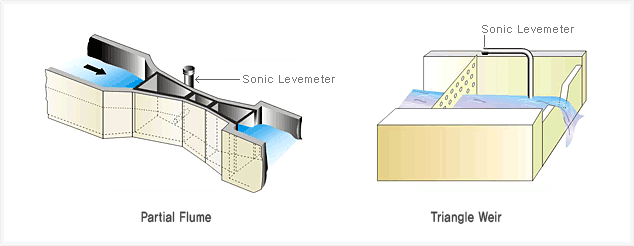

| The sonic level meter measures the level of fluid in the weirs and flumes. Then flowrate and total flow volumes are calculated by various formulas |
|
 |
|
| Measurement of levels and flows at sewage treatment plants, all types of weirs and flumes, flood gates, all types of orifices, natural water pipes, industrial tanks. |
|
 |
|
 |
| * : Option |
| Measuring Device (Wave Guide Pipe) |
| Measurement Method |
Sonic Reflection |
| Application |
Waterway, Weir(Tap & Sewage, Industrial, Dam, Filumes, Channels etc.) |
| Frequency |
1kHz~3MHz |
| Operating Temperature |
-20¡É~+60¡É |
-40¡É~+150¡É * |
| Humidity(Max) |
90% RH(98% RH) |
| Transducer |
Material |
Generator : PE, MC, Nylon, Receiver : STS304 |
| Installation |
Vertical, Slant, Multi-angle Type |
| Wave Guide Pipe Material |
Steel |
STS, CPVC * |
| Diameter |
50mm, 65mm |
| Waterproof Level |
Generator : IP65, Receiver : IP68 |
| Control and Computing Device |
| Type |
Seperate |
| Display |
Flowrate, Total, Level |
| Accuracy |
Lower ¡¾0.25%(¡¾1mm) |
| Output Signal |
RS232C |
BCD, 4~20mA DC * |
| Operating Temperater |
-20¡É~+60¡É |
-40¡É~+80¡É * |
| Save / Download |
10,000Data(year-month-day-hour-minute-second-level) |
100,000Data * |
| Level Display Unit |
§³/h, §³, m |
| Input Power |
AC110~220V(50~60Hz), DC12V |
| Demanded Power |
Operating : 3W, Walting : 1.2W |
| Size |
270(W)X370(H)X133(D) (3.5kg) |
| Exclusive Cable |
| Material |
RG-174 / U |
|
|
|
 |
|
|
|
