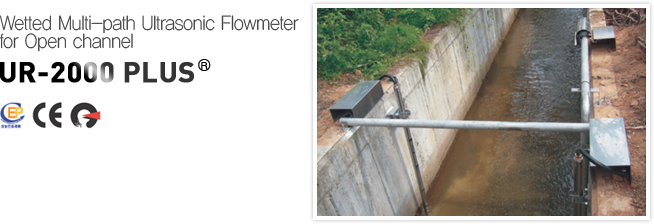

Wetted Multi-Path Ultrasonic Flow Meter for Open Channel
| PRODUCTS
|
 |
| PRODUCTS :: Flow Meter :: UR-2000 PLUS |
|
 |
|
|
 |
|
|
|
 |
|
 |
|
| An open channel flowmeter for efficient management of open sweage, industrial water treatment, and irrigation water in the open channel |
|
 |
|

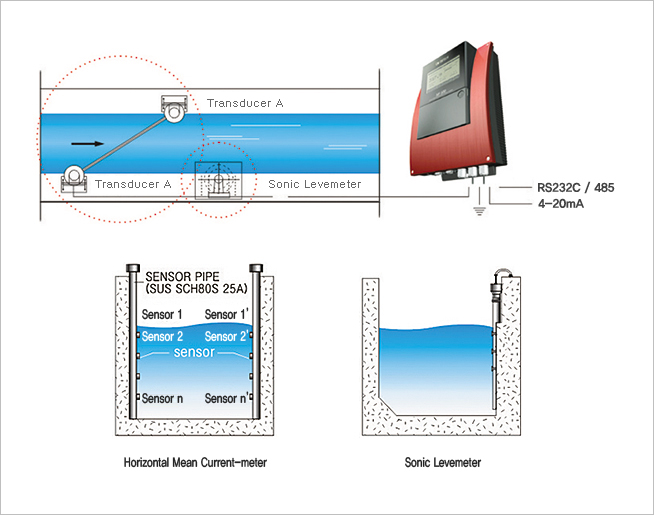

| First, mean velocities at various depths are measured using multiple transdcuers mounted on staffs are located in 30~75 degree angle to each other at both sides of the channel. Then, the fluid level is measured using the sonic levelmeter that is separately installed. Finally, the flow volume calculate from the velocities and the level |
|
 |
|
 |
| * : Option |
| Measurement Method |
Multi-path Ultrasonic Transit-Time Measurement(5 path) |
| Measuring Device |
| Fluid |
Tap water, Sewage, Industrial water, Sea water, Petroleum, Waste water etc. |
| Type |
Ultrasonic Mult-path Wetled Type(Transducer Insert Type) |
| Velocity Range |
-20m/s~+20m/s(¡¾0.02m/s) |
| Frequency |
200kHz~1.5MHz |
| Operating Temperature |
-20¡É~+60¡É |
-40¡É~+150¡É * |
| Installation Position |
Forward : over 3W Backward : over 2W |
| Material |
Transducer |
PE(Installation without stopping flow) |
Tellon, Brass, STS316L * |
| Bracket |
STS304 |
| Waterproof Level |
IP68 |
| Installation Method |
Bracket Wall-Mounting |
| Control and Computing Device |
| Main-Processing Device |
32bit Micro Process |
| Display |
240X64LCD: Flowrate, Total, Velocity Profile, Speed of Sound, Power On/Off Record, Self-Diagncsis, Level |
| Accuracy |
¡¾0.5%~¡¾0.1%(Measured Value) |
| Output Signal |
4~20mA DC, Pulse, RS232C, Alram, Relay |
RS485, BCD * |
| Input Signal |
RS232C |
| Operating Temperater |
-20¡É~+60¡É |
-40¡É~+80¡É * |
| Save / Download |
(1MB) 32,000Data(year-month-day-hour-minute-total) |
| Flowrate Display Unit |
§³, gallon, liter |
| Input Power |
AC110~220V(50~60Hz) |
| Demanded Power |
21W |
| Size |
270(W)X370(H)X133(D) (3.7Kg) |
| Level Sensor |
| Type |
Sonic Reflection |
| Frequency |
1~3kHz |
| Output Signal |
RS232C |
| Mounted Type |
Vertical, Slant, '¤¡' Type. Multi-angle Type Flange Mounting(¥Õ150mm) |
| Exclusive Cable |
| Material |
US CABLE(RG-174-12C, 4C) : 10m (Optional Length) |
|
|
|
|
 |
|
|
|
