(Block System)Wetted Multi-path Ultrasonic Flowmeter
| PRODUCTS
|
 |
| PRODUCTS :: Flow Meter :: UR-1000 PLUS¨Ü |
|
 |
|
|
 |
|
|
|
 |
|
|
|
|
 |
|

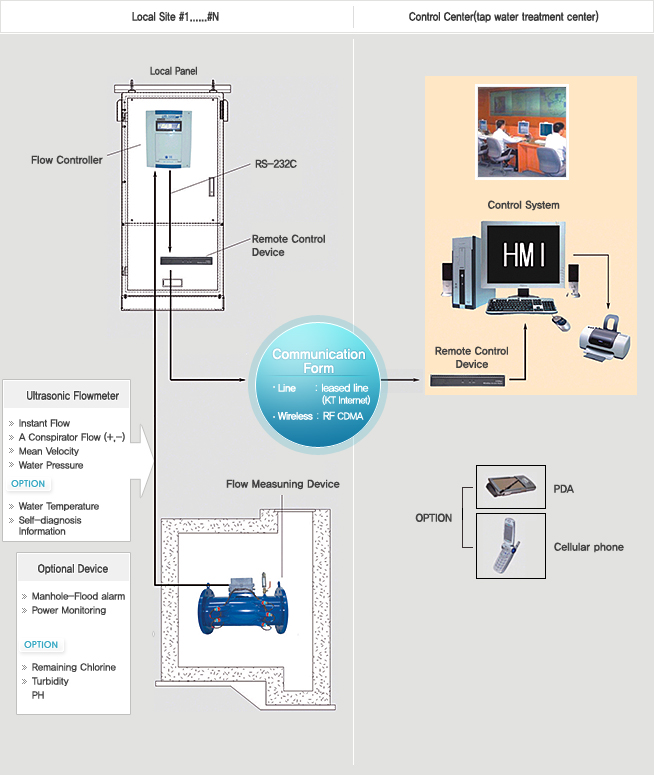

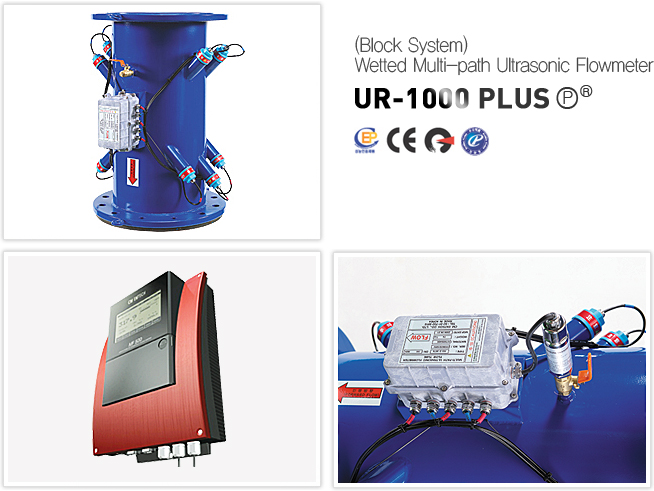

| UR-1000PLUS¨Ü is high precision flowmeter with low error in very slow flow and velocity using multi-path and wetted thpe, and it is purpose to improve the running water rate for efficient block system using flow and pressure measurement.(Watermeter) |
|
 |
|
| This meter measure without any coefficient high accuracy flow and pressure with mean velocity of multi-path(apply a double integral with the velocity and the area distribution) using multi-path ultrasonic method. |
|
 |
| * : Option |
| Measurement Method |
Multi-path Ultrasonic Transit-Time Measurement(3, 5 path) |
| Measuring Device |
| Fluid |
Tap water, Sewage, Industrial water, Sea water, Petroleum
Waste water, Beverage etc. |
| Type |
Ultrasonic Mult-path Wetled Type(Transducer Insert Type) |
| Velocity Range |
-20m/s~+20m/s(¡¾0.02m/s) |
| Applied Pipe Diameter |
DN25mm~10.000mm |
| Frequency |
200kHz~1.5MHz |
| Operating Temperature |
-20¡É~+60¡É |
-40¡É~+150¡É * |
| Installation Position |
Forward : over 3D Backward : over 2D |
| Material |
Transducer |
PE(Installation without stopping flow) |
Tellon, Brass, STS316L, Titanium * |
| Flowtube |
Carbon Steel |
STS304, PVC * |
| Operating Temperature |
PN 10(kgt/§²) |
PN 40(kgt/§²) * |
| Waterproof Level |
IP68 |
| Pressure Range |
0~20 kgt/§² |
| Installation Method |
Flange Type(DN 25mm~) |
Hot Tapping Type(DN 200mm~) |
| Control and Computing Device |
| Type |
Seperate |
| Main-Processing Device |
32bit Micro Process |
| Display |

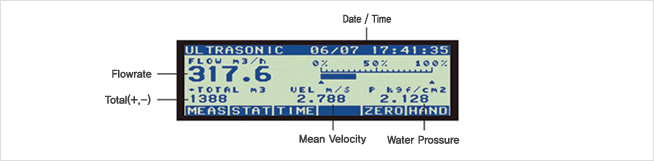

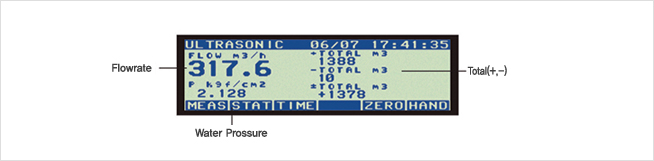

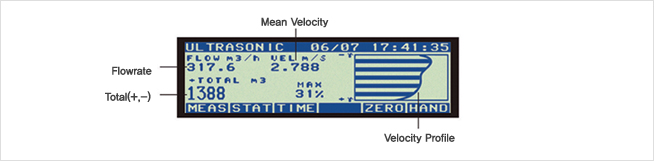

240X64LCD: Flowrate(+,-), Total(+,-), Velocity, Velocity Profile,
Speed of Sound(Temp), Pressure, Power On/Off Record, Self-Diagncsis |
| Accuracy |
¡¾0.2%~¡¾0.5%(Measured Value) |
| Output Signal |
4~20mA DC, Pulse, RS232C, Alram, Relay |
RS485, BCD * |
| Operating Temperater |
-20¡É~+60¡É |
-40¡É~+80¡É * |
| Save / Download |
(1MB) 32,000Data(year-month-day-hour-minute-total(+,-,¡¾), Flowrate, Pressure) |
| Flowrate Display Unit |
§³, gallon, liter |
| Input Power |
AC110~220V(50~60Hz) |
| Demanded Power |
16W |
| Size |
270(W)X370(H)X133(D) (3.7Kg) |
| Exclusive Cable |
| Material |
US CABLE(RG-174-12C) : 10m (Optional Length) |
|
|
 |
|
 |
|
|
|
|
|
|
 |
|
|
|
